VOLTES Lithon EV Series
EV SERIES
Power Your Ride with the Future: Go Further, Last Longer with LITH-ON E-Rickshaw Batteries!"
VOLTES INDIA is proud to introduce our advanced Lithium Iron Phosphate (LiFePO4) battery solutions specifically designed for E-Rickshaws.
Our batteries are engineered to offer superior performance, longer life, and enhanced safety, making them the ideal choice for electric rickshaw applications.
Benefits and Features- LiFePO4
- High Service Life: >2000 Cycles
- Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away. no fire or explosion risks)
- Embedded BMS (Battery Management System): improve and secure the battery
- No Lead, no rare earths, no acid, no degassing
- Calendar life > 6 years
- Excellent temperature robustness (-20 °C up to +60 °C)
- RANGE: 51.2V 100Ah
- Constant power during discharge (very low internal resistance)
- Very low Peukert's losses (energy efficiency >98%)
- Very low self-discharge (<3 % per month)
- About 50 % lighter and 40% smaller than equivalent Lead-AGM battery with same
- usable energy Certification: IEC, ISO, RoHS, UN38.3, BIS
Benefits and Features- LiFePO4
- Built–in automatic protection for over‐charge, over discharge, short circuit, temperature.
- Passive cell balancing.
- Passive Temperature cooling
- CAN communication output for monitoring (Optional).
- In-built Bluetooth connectivity.
- GPS tracking and Control (Optional).

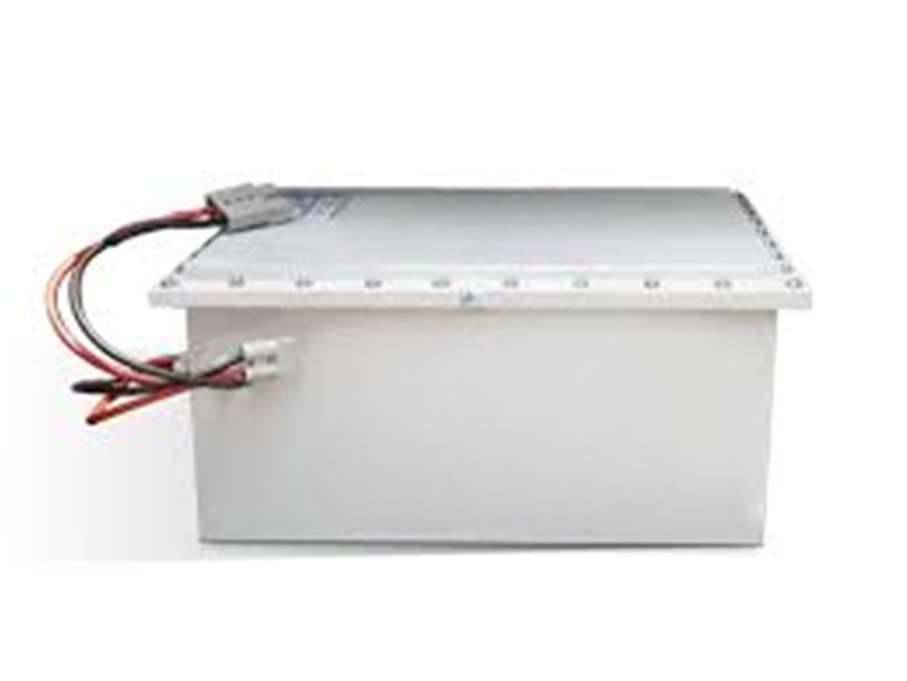

E-Rickshaw Battery Pack
Technical Specification:
| Application | E- Rickshaw |
|---|---|
| Model Name | 3KVA/36V |
| Chemistry | |
| Energy | 5120Wh |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100AH |
| Charging Voltage | 58.40V |
| End Voltage | 44.80V |
| Standard Charging Current* | 20A |
| Max. Continuous Charging Current* | 50A |
| Max. Continuous Discharge Current* | 100A |
| Operating Conditions and Environment | |
| Temperature °C | Charge 0°C – 45°C |
| Discharge 0°C – 55°C | |
| Storage 25°C @50% SOC for 6months | |
| Life Cycles(at 80% DOD) | 2000 Cycles |
| Mechanical Characteristics | |
| Weight | 45KG Approx |
| Dimensions of Cabinet (L*W*H) | 495*365*230 MM |
| Type of enclosure | Metal Cabinet |
| Type Of Connector | Anderson |
| Protection and Monitoring | |
| BMS Protection | Short Circuit Protection, Over voltage Protection, Under Voltage Protection, Over Discharge/ Charge Protection/ Temperature |
| Communication | CAN 2.0 (Optional) |
| GPS | GPRS: Class 12, TCP / IP (Optional) GSM Frequency: 850/900/1800/1900 MHZ |
| Bluetooth Connectivity | In-buil |
